UAR Hem is used to handle non-theoretical hems.

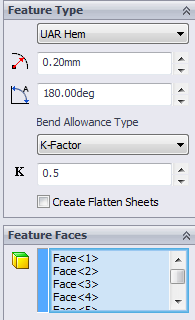

PropertyManager for UAR Hem

 Internal Bend radius

 Bend Angle

Bend Allowance Type

K-Factor; Bend Allowance; System K; System BA; Database K; Database BA

Create Flatten Sheets for the unfolded hem feature again.

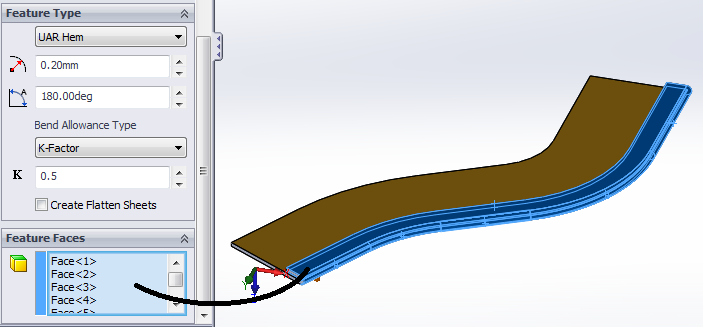

Feature Face for the selection of faces from the hole cluster region

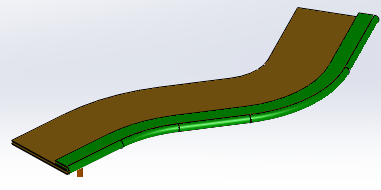

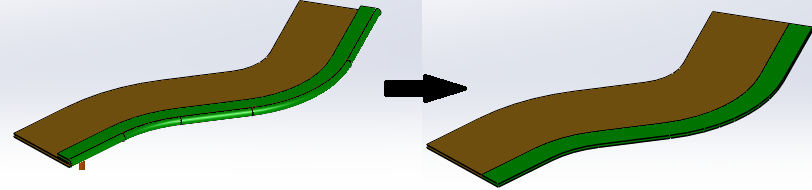

To unfold and create UAR Hem for the highlighted region above:

  1. Click Unfold icon from 3DQuickPress Toolbar
  2. Select A as the Fixed face and click OK to finish Unfold
  3. RM Select  Sheet Metal Object and click User Assist Recognition from Shortcut Menu.
  4. Press the Add button to add a new UAR Feature
  1. Select UAR Hem feature type
  1. Select top and bottom faces of the UAR Hem to Feature Faces
  2. Enter the inner bend radius and then bend angle.
  3. Click OK to finish
